The PVPM1040X 1000V 40A IV Curve Tracer

Key Features of PVPM1040X?

Accurate I-V curve measurement using capacitive load – ideal for detailed, reliable analysis.
Continuous measurement with freely adjustable time intervals via additional PC software.
Integrated module and customer/project databases for quick reference and organized workflows.
Intuitive touchscreen operation paired with a high-contrast, high-resolution color TFT display.
Measurement accuracy: Better than 1% for IV curve / ±5% for peak power (Ppk).
4-wire (Kelvin) measurement – minimizes voltage drop errors and ensures precise readings.

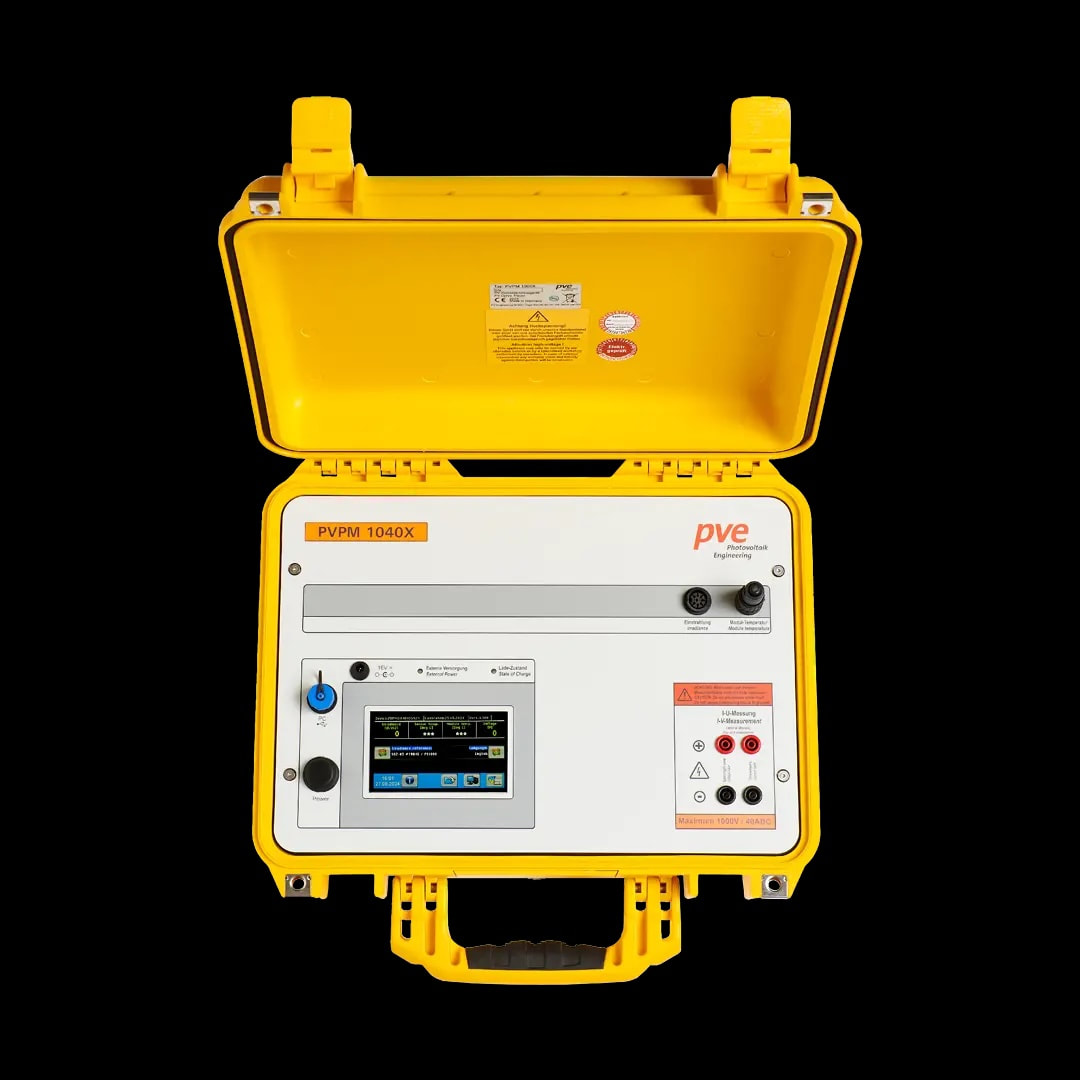

The PVPM1040X is a portable measuring device with a rugged plastic housing, integrated battery power supply, and external charger. The device operates with a powerful miniature industrial PC and is equipped with a high-contrast, high-resolution TFT graphic display. Measurements and analysis can be carried out without additional equipment. Data transfer to a PC is enabled via a standard USB interface. Operation is menu-driven and intuitive, requiring no training.
